Agriculture Farm Machinery Broiler Poultry House Chicken Feeding Farm Equipment

Basic Info

Model NO.	UBT-01E
Blade Type	No Teeth
Computerized	Computerized
Certification	QS, GMP, ISO9001:2008, CE, Soncap
Condition	New
Design Scheme	Professional Plan and Install
Applicable Industries	Poultry Farm
User	Broiler, Breeder, Layer, Turkey.
Equipment Size	Based on The Quantities of The Birds
Using Life	More Than 15 Years
Warranty	5 Year
Material	Plastic and Galvanzied Tube
Main Feed Line	Feel Silo or Hopper
Chicken Feeder	50-55 Birds
Chicken Drinker	10-12 Birds
Exhaust Fan	36 Inch or 50 in Ventilation Fans
Cooling Pad	Fiber Paper with Aluminium Frame
Heater	Diesel/Coal/Gas/Electricity Heater
Climate Controller	Agrologic T607/T616/Vision 24s/Image II
Delivery Time	20 Days
Transport Package	Standard Package
Specification	Poultry farming machinery
Trademark	U Best
Origin	China
HS Code	84362900
Production Capacity	300, 000 Square Meters

Product Description

Broiler poultry house chicken feeding farm equipment

Competitive service for poultry house project

U Best Husbandry equipment adopt advanced European and US technology in environmental ventilation concept,undertakes to design large & medium farm project and old farm renovation project. We will provide customized design and solutions continuously to satisfy your all requirements.

1. Chicken Equipment: produce and supply first-class Quality poultry equipment with Good Price;2. Poultry Farm: select location, design and construction preparation guidance;3. Layout Drawing: make layout drawing of our equipment to guide you build house and install equipment;4. Equipment Installation: if you need, we send our engineer to your farm for guide of equipment installation;5. Training: we can train your workers to operate our equipment and raise poultry;6. After-sales service: free consultancy and prompt reply to questions from clients.

Full set of broiler poultry house chicken feeding farm equipment Includes:

Item	Description	Item	Description
01	Main Feed Line (Storage) system	06	Environment Control System
02	Automatic Pan Feeding Line	07	Heating System (Optional)
03	Automatic Nipple Drinking Line	08	Fogger Spraying and Disinfection System (Optional)
04	Ventilation System	09	Curtain for Two Side Walls (Optional)
05	Cooling Pad System	10	Plastic Slat Floor (Optional)

Detailed parameters of poultry house chicken farming equipment

1.Main feeding line systemSilo/ manpower hopper is the beginning part of main feed line system. There is a feed sensor at the end of main feed line which controls the motor on and off to achieve automatic feed delivery. 2.Pan feeding line system

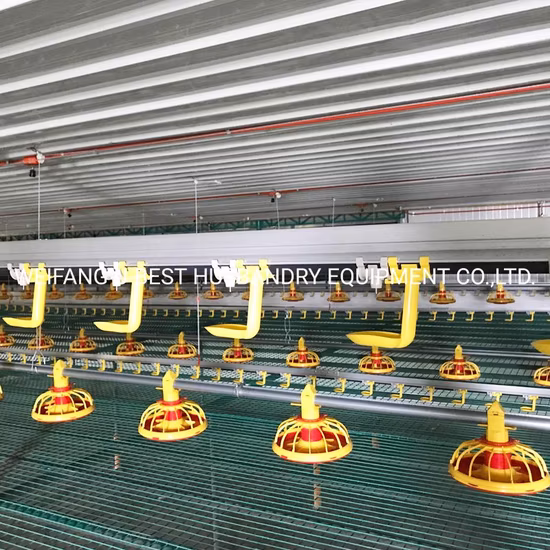

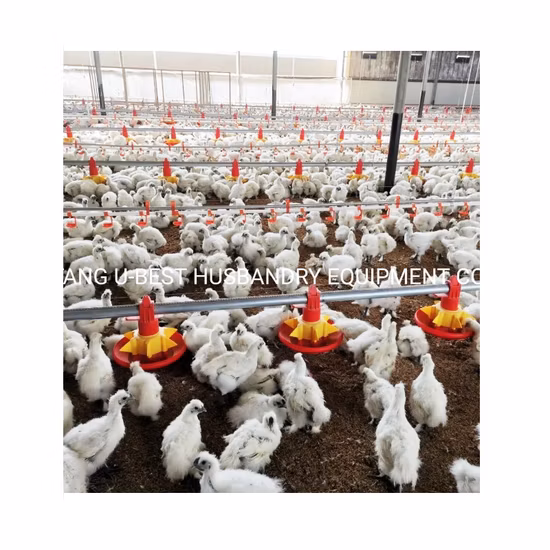

Covey feed from vice hopper into each feed pan automatically.Taiwan Brand driving motor;Hot-dip galvanized vice hopper;Pan feeding line with South Africa Spring Auger and Germany Sensor;Suspension and lifting system convenient to adjust the feeding line height by winch.
3. Nipple drinking line systemThis system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily.Bigdutchman/Plasson/Lubing type for you to choose.Water front system;Water pipe with nipple drinker and drip cup;Pressure regulator and water-level display;Hanging system;
4. Ventilation systemThis system controls climate conditions, fresh air, humidity and temperature in poultry shed. It is vital for growing birds, including air inlets and ventilation fan.

Specifications	50'' butterfly cone fan	50'' axial flow box fan	36'' axial flow box fan
Flow amount(m3/h)	51020	43170	20800
Size(L*W*H)(mm)	1380*1380*1360	1380*1380*1450	1000*1000*450
Noise level(db)	≤65	≤65	≤64
Power(Kw)	1.1	1.1	0.4
Voltage(V)	380/220/others	380/220/others	380/220/others
Current(A)	2.8	2.8	1.25
Weight(Kg)	100	89	54

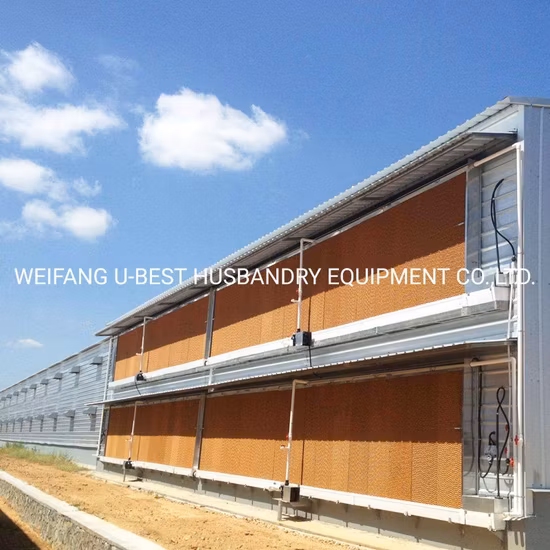

5.Cooling pad system

Cooling pad and fan, the longitudinal ventilation and cooling combination is the most economic and effective summer cooling system for poultry house.

Color: black, yellow, green, red etc; Thickness: 100mm, 150mm; Height: 1660mm, 1960mm, 2160mm (with frame);1500mm, 1800mm, 2000mm(without frame)

Frame: Aluminium frame high strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical. Galvanized steel frame for your option, lower price than aluminium frame
6.Automatic environment control systemThis system saves labors and resources under the condition of assuring a optimum growth environment for poultry chickens. Environment controller along with temperature is imported from Agrologic in Israel, which can set an optimum working mode according to the local climate and raising environment.
The Most Advanced Control System not only has the above function, but also could be done to do chicken feed weighing/chicks weighing/connecting to computer or personal phone.

7. Heating system (Heater)
Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage. Poultry gas space heater, diesel tank heater, infrared gas brooder and hot-blast heater for your choice.

Standard package of poultry farm equipment

1. silo: disassembled, spare parts in carton box, galvanized sheet in bunch and in bulk;

2. feeder: pan feeder in carton box, feed pipe in bunch in bulk; hopper in bulk;

3. water: pipe fitted with nipples in plastic bag, cups and spare parts in carton box; support pipe: in bunch in bulk;

4. fans: disassembled way or assembled way;

5. air inlet: carton box;

6. cooling pad: assembled with aluminium frame, or disassembled;

7. heater: in carton box

8. fogging system: spraying engine in carton box, spare parts in carton box

9. enviroment control: In carton box;

Ceitificate of our poultry farm equipment

Poultry house equipmet ProjectWelcome to contact us for any questions. Let's make poultry raising simple and efficient!To start your farming business easily, don't hesitate to contact us any more.
